Saturday, September 23, 2017

back together


Added a valve to the new manifold and got it spinning again.  The weather is getting frosty in the mornings.
at No comments:

Monday, September 18, 2017

not plumb, level, or square

Got the manifold tubing in place.  This connects a single air/steam source into 4  points.



at No comments:

Saturday, September 2, 2017

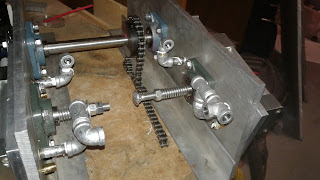

Intake manifold


Started making the forward  manifold.   Will be connecting them with  flared fittings and copper tube.
at No comments:
Subscribe to: Posts (Atom)

forward and reverse manifolds done

finished the forward and reverse manifolds, next will be the reversing valve.
